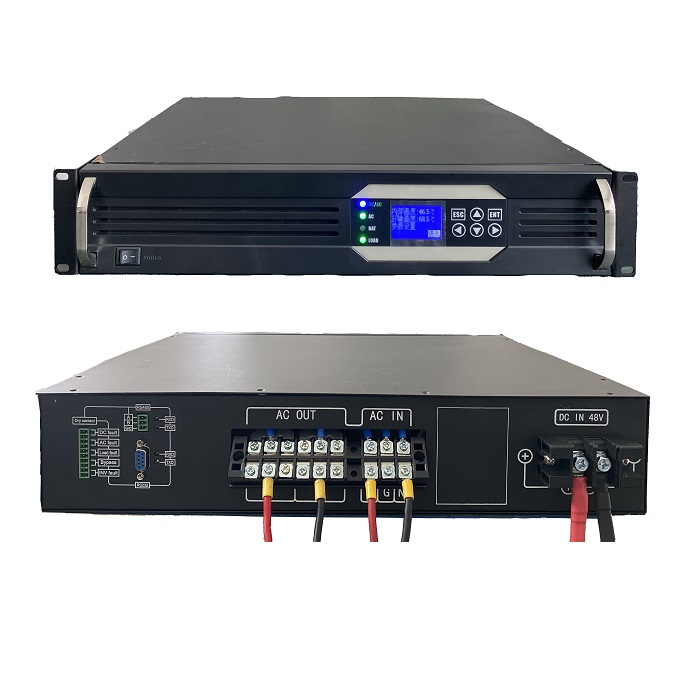

48Vdc 110Vac 1-6KVA Rackmount telecom inverter RS485 RS232

DC Input Range: 45.5 to -57 vdc;
Bypass Input:85-135VAC;
AC output: 110VAC(±5%） Can be Adjustable On the LCD Display;
Output Voltage Precision(V):110Vac ±1.5%
≥85% (Bypass Mode)
Communication Interface:Rs232& Rs485 and Digital Input, SNMP optional

24Vdc to 220Vac 1-3KVA Rack Mount Inverter Power Supply

DC Input Range: 22 to -28 vdc;
Bypass Input:170-270VAC;
AC output: 220VAC(±5%） Can be Adjustable On the LCD Display;
Output Voltage Precision(V):220Vac ±1.5%
≥85% (Bypass Mode)
Communication Interface:Rs232& Rs485 and Digital Input, SNMP optional

24Vdc to 120Vac 1-3KVA Rack type Pure sine wave inverter

DC Input Range: 45.5 to -57 vdc;
Bypass Input:170-270VAC;
AC output: 220VAC(±5%） Can be Adjustable On the LCD Display;

24Vdc to 115Vac 1-3KVA Rack type Pure sine wave high frequency inverter

DC Input Range: 45.5 to -57 vdc;
Bypass Input:170-270VAC;
AC output: 220VAC(±5%） Can be Adjustable On the LCD Display;

6KVA Pure sine wave online UPS with charger

Online UPS
Input voltage range:
120Vac~270Vac
Output voltage range:
45.5Vdc~53Vdc
Transfer Time:
Line mode to Battery mode 0ms
Line mode / Battery mode to Bypass mode 4ms

5KVA Pure sine wave online UPS

Online UPS
Input voltage range:
120Vac~270Vac
Output voltage range:
46.5Vdc~53Vdc
Transfer Time:
Line mode to Battery mode 0ms
Line mode / Battery mode to Bypass mode 4ms

3KVA Pure sine wave online UPS

Online UPS
Input voltage range:
120Vac~270Vac
Output voltage range:
46.5Vdc~53Vdc
Transfer Time:
Line mode to Battery mode 0ms
Line mode / Battery mode to Bypass mode 4ms

24Vdc 20-600 Amperes Rectifier system

AC input voltage range: 90~290Vac
Efficiency>93%
Perfect battery management, battery temperature
Multiple communication ports, easy for networking and remote management，ModbusRS485，TCP/IP， YDN23 (YD/T 1363) protocol
Temperature compensation, LVLD and LVBD protection
Automatic battery test function, cycle test, quick test

Monitor Controller of Rectifier System

DC Input Voltage: 40~60Vdc
Input Current: ≤0.5A
Power: Less than 20W
Communication: RS485/TCP/IP/SNMP
Baud Rate: 9600 Bit/s

110Vdc/220Vdc Rectifier Module

Single Input
Input Voltage Range: 90Vac to 265Vac
Rate Input Range: 110Vac/220Vac
Efficiency: ≥93%@220Vac 100% Load
Rated Capcity:
2500W(176Vac～265Vac)
1200W(90Vac～175Vac)

24Vdc/48Vdc Rectifier Module

Single Input
Input Voltage Range: 90Vac to 290Vac/ 90Vdc to 400Vdc
Rate Input Range: 110Vac/220Vac
Efficiency: ≥93%@220Vac 100% Load
